TP-Link Omada

Pre-requisites

Your Access Point and Controller should be already paired and working together for a simple WiFi Network.

- If you use the cloud version of Omada Controller, it should be the Standard version and not the free one.

- You need a TP-Link controller to use Aiwifi. Stand Alone mode access points do not work with Aiwifi.

- This manual was tested with Omada controller version: 5.15.8.2

Captive Portal Setup

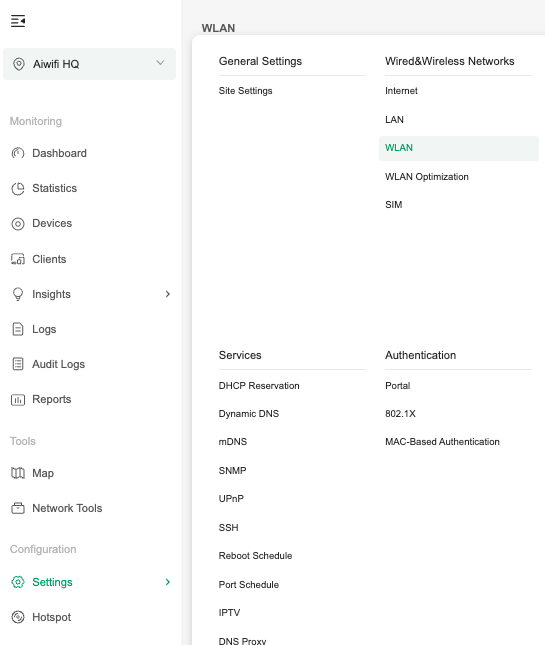

1. Go to "Settings" menu - "Wired&Wireless Networks" and click on WLAN

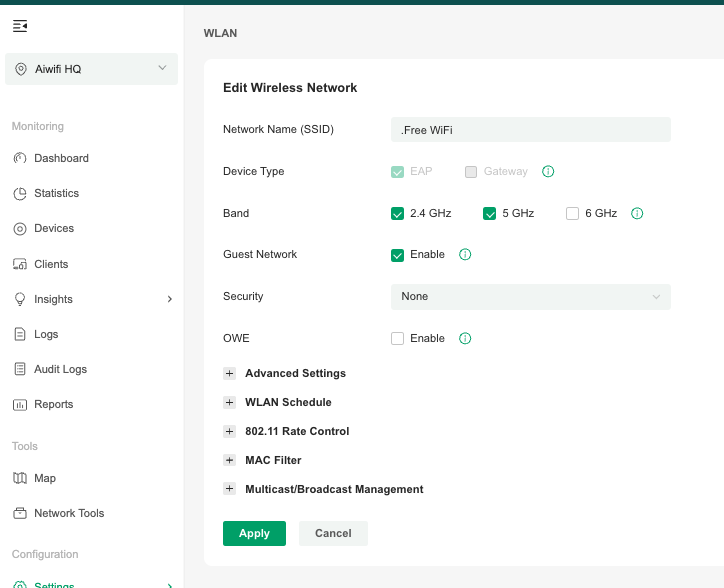

2. Click on "+Create a new WiFi Network" button on the top right and create the Guest Network. You can name it however you want. Make sure you select "Security: None"

Network Name (SSID): [.Free WiFi or the name of WiFi network you want]

Guest Network: Enable

Security: None

Click on Apply.

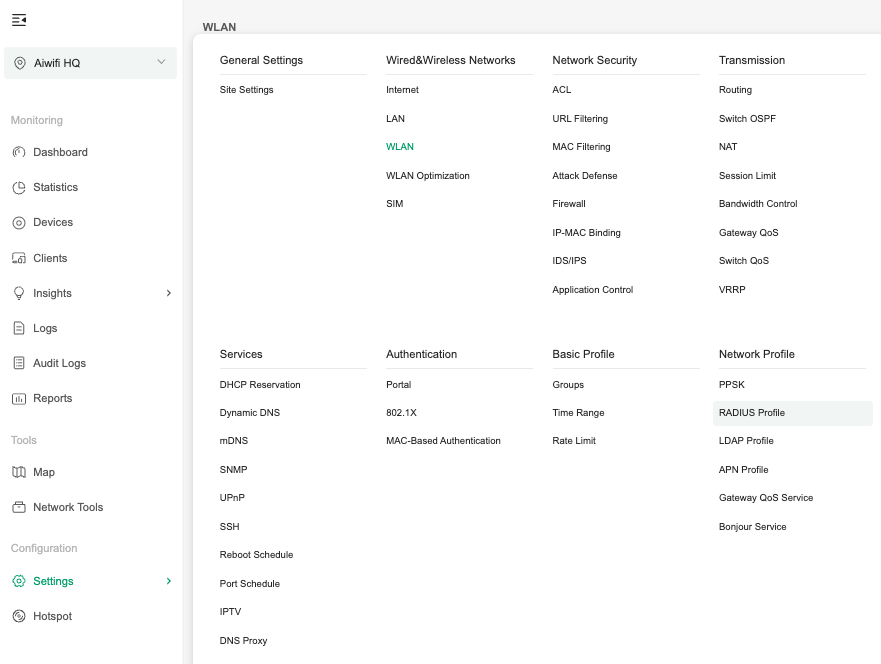

3. Navigate to Settings - Network Profile - Radius Profile

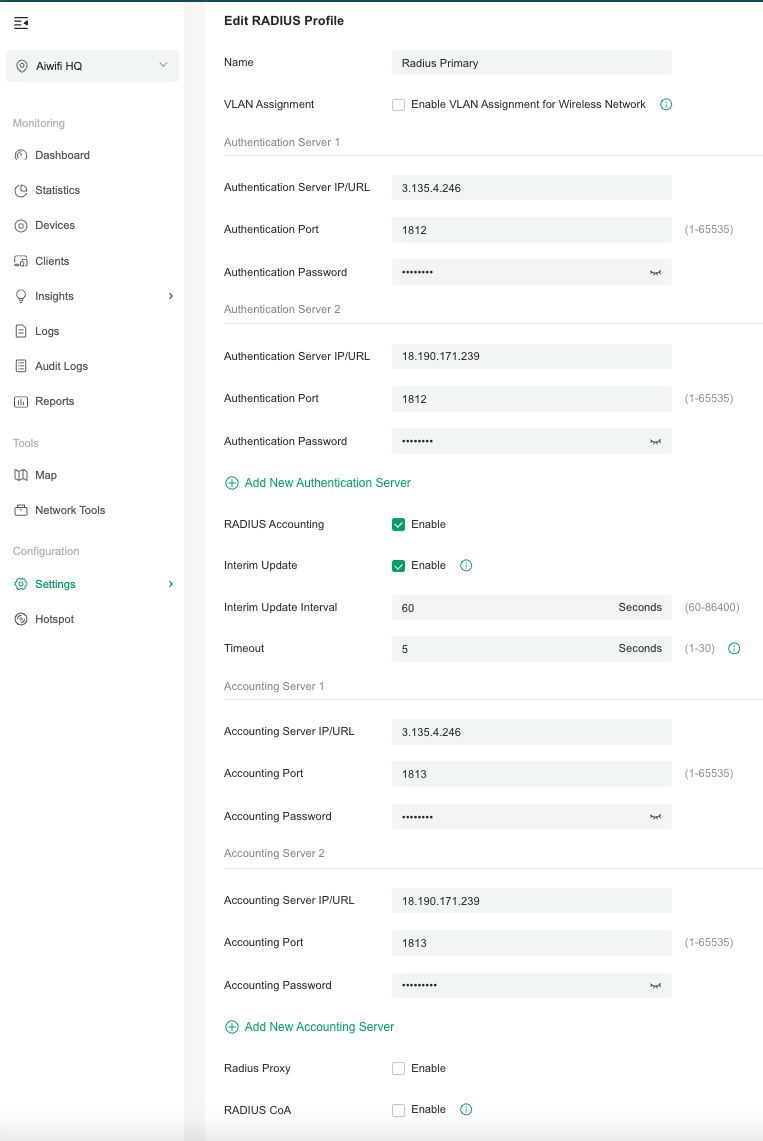

4. Click on "+ CREATE NEW RADIUS PROFILE" button and fill it out with the information of the radius servers.

You will have to create two Authentication Servers and Two Accounting Servers, one is the primary and the other the secondary, in case of failure.

You can copy the content on the image, or go to the General Information help file to copy and paste the content in your controller. The authentication password will be shared by your account manager or the support team.

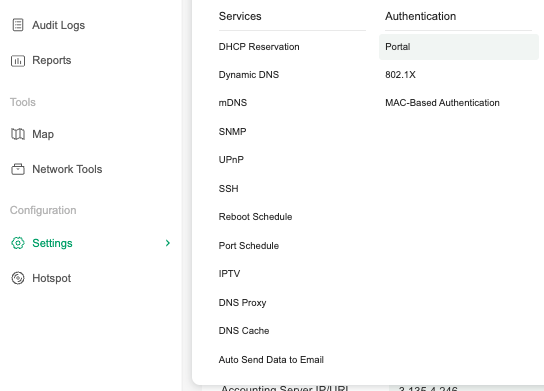

5. Navigate to Settings - Authentication - Portal

6. Click on +Create new Portal

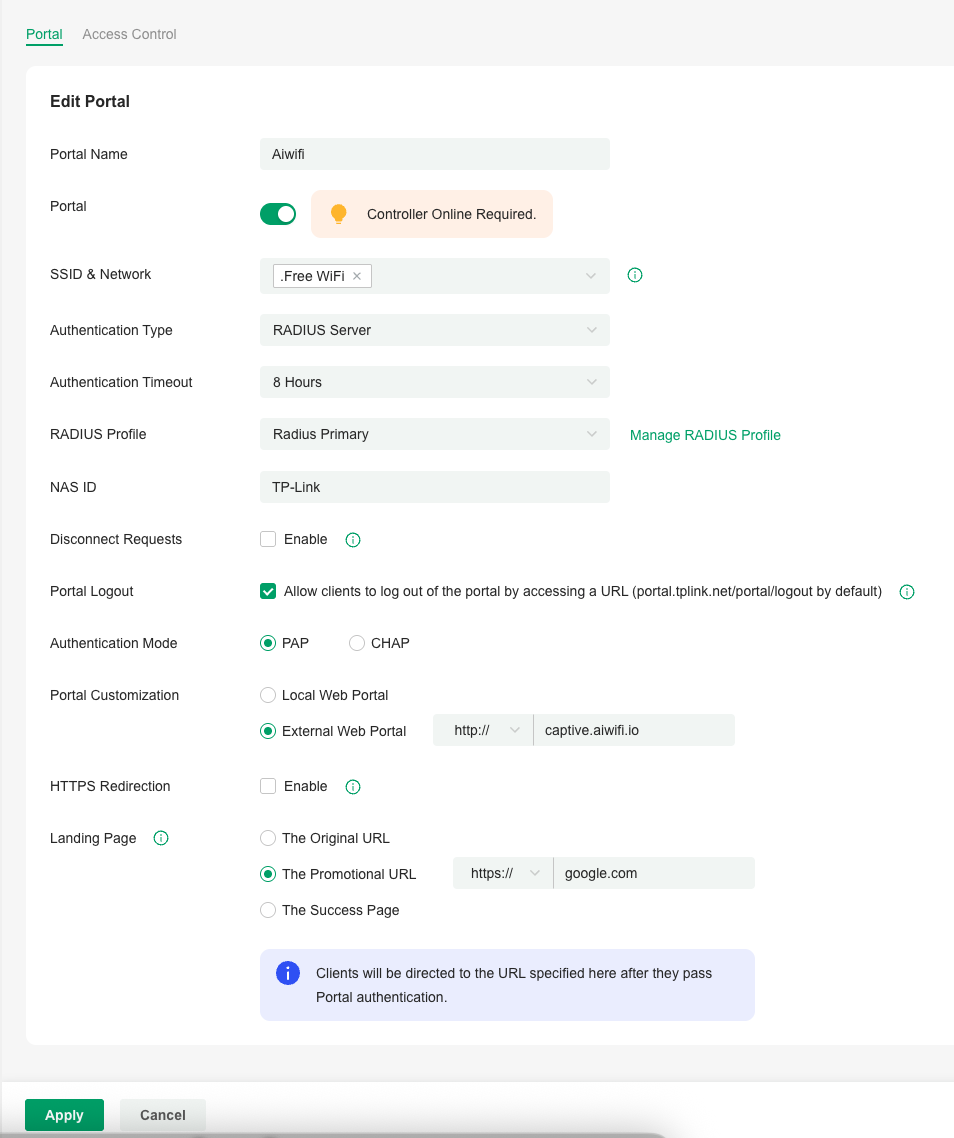

7. Fill out the settings as the image declares.

Portal Name: Aiwifi
Portal: Enabled
SSID & Network: Select your wifi network
Authentication Type: Radius Server
NAS ID: TP-Link
Portal Logout: Checked.
Authentication Mode: PAP
Portal Customization: External Web Portal
-- http://captive.aiwifi.io
HTTPS Redirection: Unchecked
Landing Page: The promotional URL (you can set it to your website or Aiwifi's redirect page inside your account).

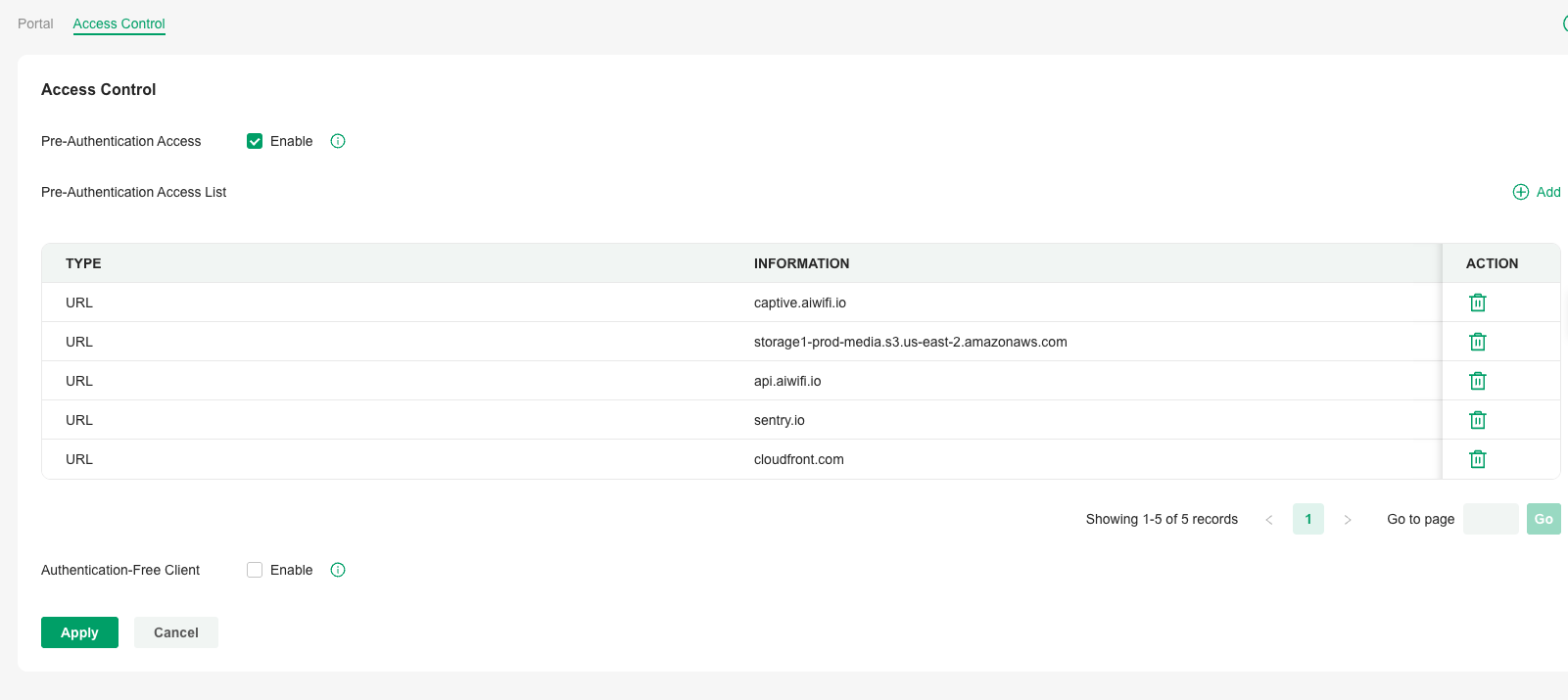

8. Once created, we need to allow free access to some URL's. This URL's should be added in the Walled Garden. Navigate into the "Access Control" tab inside the "Portal" menu. Enable Pre-Authenticatoin Access and click on "Add"

9. Add the addresses on the "Walled Garden" section on  this article: https://help.aiwifi.io/en/category/configuration-manuals/article/basic-setup-information

10. Click on SAVE and then click on APPLY

11. You should now be able to test your captive portal by connecting to the WiFi network you created. If you haven't added your Access Point to your Aiwifi account you should see the following message on the portal. Add your AP to your Aiwifi account to customize your captive portal.
